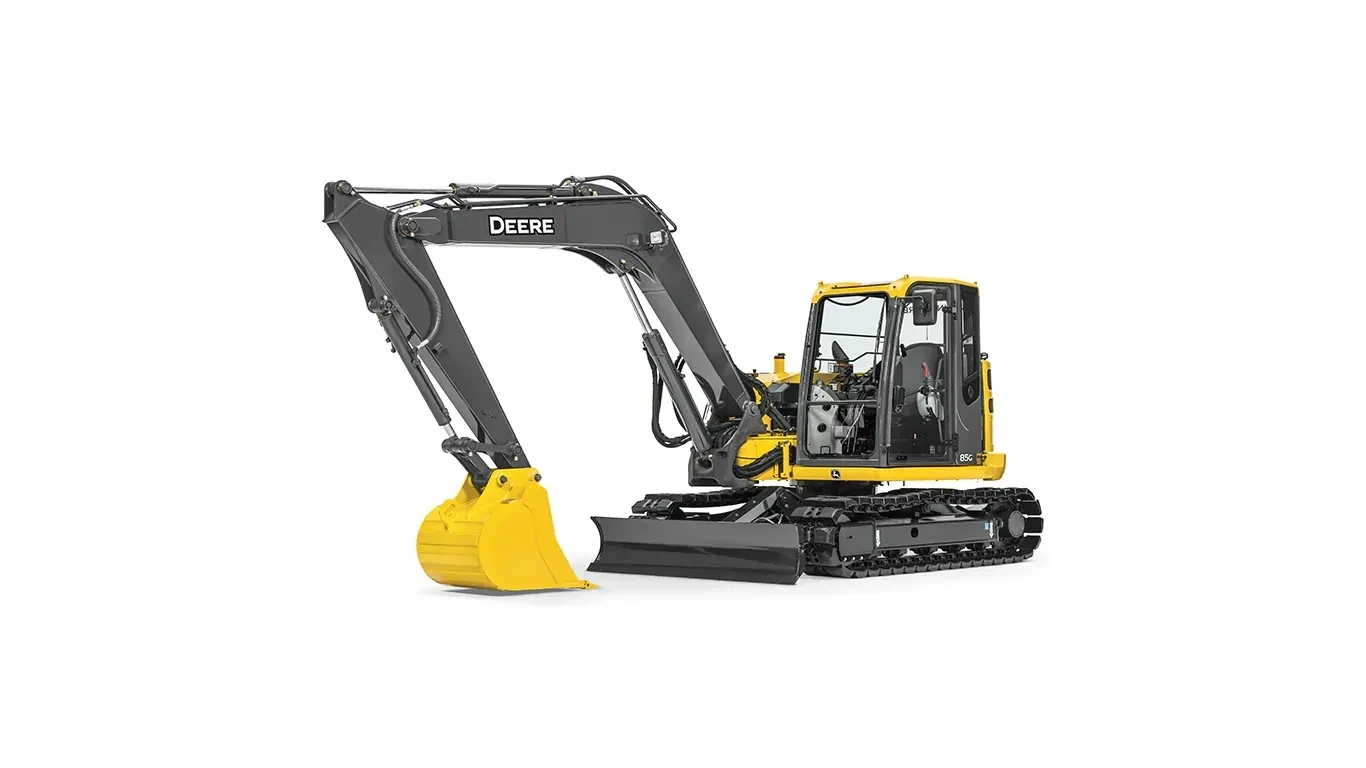

85G Deere Excavator (Enclosed)

Mid-Size Excavator- WEIGHTS

• Operating Weight, lbs 19244

DRIVELINE

• Rated speed, rpm 2000
• Engine Output - Net, kW (hp) 42.4 (56.9)
• Number Of Carrier Rollers - Each Side 1
• Number Of Track Rollers - Each Side 5
• Track Shoe Width, inches 18

DIMENSIONS

• Transport Length Mono Boom, mm (ft/in) 6820 (22 ft 5 in)
• Transport Height - Maximum, mm (ft/in) 2610 (8 ft 7 in)
• Overall Width, mm (ft/in) 2200 (7 ft 3 in)
• Track Length On Ground, mm (ft/in) 2290 (7 ft 6 in)
• Undercarriage Overall Length, mm (ft/in) 2920 (9 ft 7 in)
• Tailswing Radius, mm (ft/in) 1490 (4 ft 11 in)
• Ground Clearance, mm (inches) 360 (14)
• Dozer Blade Height, mm (inches) 460 (18)
• Dozer Blade Width, mm (ft/in) 2200 (7 ft 3 in)
• Width over standard tracks, mm (ft/in) 2200 (7 ft 3 in)
• Track Gauge, mm (ft/in) 1750 (5 ft 9 in)
• Digging Reach - Mono Boom, mm (ft/in) 7700 (25 ft 3 in)
• Dig Height - Mono Boom, mm (ft/in) 7140 (23 ft 5 in)
• Dump Height - Mono Boom, mm (ft/in) 5080 (16 ft 8 in)

PERFORMANCE

• Travel Speed - High, kph (mph) 5 (3.1)
