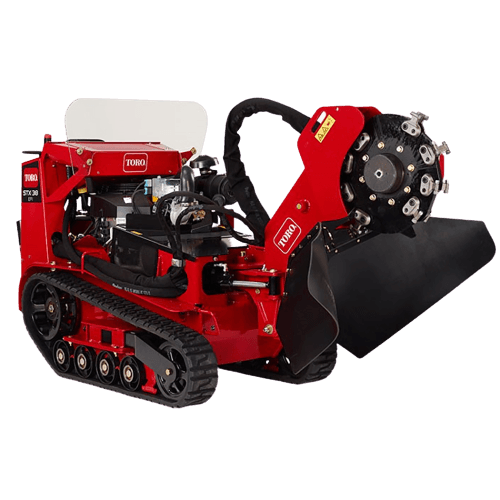

30 HP Stump Grinder

• Height: 49.5″
• Length (head to side): 79″
• Length (head straight): 98″
• Width: 35.5″
• Weight: 1,700 lb.
• Hydraulic Reservoir: 14 gallons
• Hydraulic Flow to Head: 13.3gpm
• Track Width: 7.1″
• Total Ground Contact: 470 sq. in.
• Ground Drive Forward: 290 ft/min
• Ground Drive Reverse: 180 ft/min

WHEEL SPECIFICATIONS

• Cutting Wheel: 19.2″ diameter to tooth
• Cutting Teeth: 0.750 thick, 16 green teeth
• Cutting Depth: 12″
• Cutting Height: 32″
• Head Swing: 134˚, 99.7″ arc
